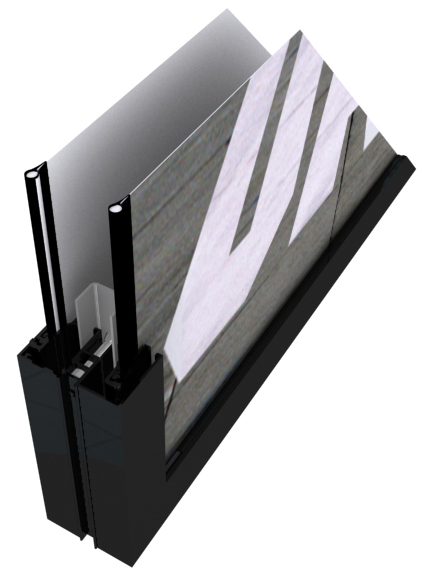

Placard
The Placard banner is double-sided accepting two media skins, one on each side. The total depth is only 130mm and the media is framed on all four sides by an 80mm border. Custom sizes up to 5m by 2m in both portrait or landscape formats available. Larger sizes may be possible depending upon mounting conditions. Naturally any colour choice is possible. The media uses standard vinyl Flexface with a 9mm keder attached on all four sides. Various hanging arrangements can be made available ranging from suspension stainless steel cables to solid bars or poles.
The standard banner is of course non-illuminated, however, we have also developed an internally illuminated version so please contact us if that is also of interest.
Benefits
- Double sided.

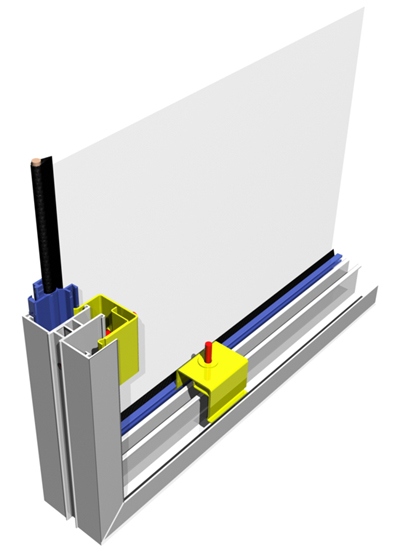

- Unique hidden tensioning system.
- Horizontal and vertical tensioning.
- Quick media loading and removal.
- No opening flaps.
- Only 130mm deep.
- Slim 80mm border.
- Internal structure for secure ceiling connections.
| Outline Specification |
| |
| Module width |
: |
Custom made sizes. |
| Module height |
: |
Custom made sizes.
|
| Module depth |
: |
130mm. |
| Illumination |
: |
None (Contact SMF if illumination is required). |
| Diffuser |
: |
None. |
| Construction |
: |
Polyester powder coated aluminium.
|
| Door opening |
: |
None. |
| Total weight |
: |
Depends upon size - contact SMF International |
| Posting |
: |
Retained keder retracted into the frame to tension. |
| Installation |
: |
Custom design to suit ceiling conditions. |
|
|
