Universal Contemporary

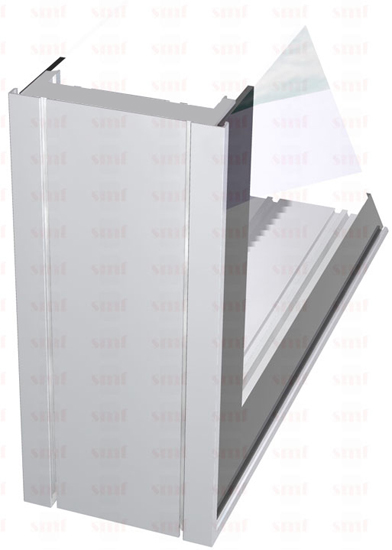

Edge-to-edge framed door style which is designed to enable easy field replacement of both glass and polycarbonate. Tough powder-coat painted to a colour of your choice.
Available in all static and scrolling display configurations. Many options are available including plinth designs and lighting.
Benefits
- Contemporary fully glazed door but maintaining the ability to use polycarbonate sheet and
the ability to replace in situ.
- Time-proven and highly reliable seals, lock, finish and hinge systems
- Drop-down poster panel and diffuser for posting at ground level
- Standard or new long-life and Full-fill lighting options
- Electronic lighting ballasts
- Glass or polycarbonate glazing—field replaceable
- Indoor and outdoor use
- Aluminium construction with power-coat paint finishing to customer colour specification
- Full range of static and scrolling poster configurations
- Optional standard plinth designs
- Custom designs possible upon request
Outline Specification |
|
|
|
Poster Size |
: |
1800 X 1200 mm (other sizes available) |
Safe Area |
: |
1760 x 1160 mm (other sizes available) |
Glazing |
: |
6mm Toughened glass or polycarbonate as specified |
Diffuser |
: |
Polypropylene or net |
Posting |
: |
Dual poster clip poster retaining system,
Drop-down poster panel |
Locking |
: |
Security key with dual latch closure system |
Voltage |
: |
230 VAC, 50 Hz |
Power |
: |
220W static and 265W scrolling (typical consumption) |
SIGN TYPE |
DIMENSIONS [mm] |
MASS |
|
|
|
Wall mounted [static] |
1980 x 1380 x 148 |
98kg |
Wall mounted [scrolling] |
1980 x 1380 x 148 |
98kg |
Single-sided free standing [static] |
2627 x 1380 x 148 |
145kg |
Single sided free standing [scrolling] |
2627 x 1380 x 148 |
145kg |
Double sided free standing [static] |
2627 x 1380 x 180 |
182kg |
Double sided free standing [scrolling] |
2627 x 1380 x 180 |
182kg |
|
|
|
FSU plinth height 600mm as standard |
|
|
|
|
