SkyHi

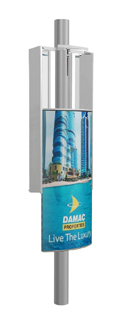

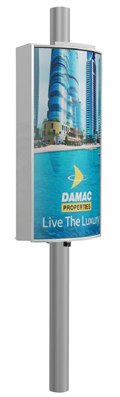

SkyHigh This new and unique 3m x 1.5m double-sided and backlit lamppost advertising unit offers a handsome and effective curved Flexface vinyl tensioned display which can be posted and automatically tensioned from the base of the unit.

Benefits

  • Elevated very high-impact advertising.
  • Elegant minimalist aesthetic with a handsome curved face.
  • Safe operation with bottom-loaded media and media tensioning - no working at height or road barriers required.
  • Very quick two-man poster changing.
  • Poster tensioning on all four sides for optimum presentation.
  • Can use the existing lamp-post power supply saving expensive excavations.
  • Quick and simple clamped installation.
  • The post only needs to be drilled to make a power connection.
  • Lighting trays sealed to keep out dust, water and insects.
  • Branding / logo area at the top of the unit.
  • Galvanised steel, tough polyester powder coating and stainless steel fixings used throughout.
  • Optional additional covers.
Outline Specification

Configuration :  Post Mounted.
Poster Size :

3060 x 1560 mm Portrait.
Safe area :  3000 x 1500 mm.
Media :  Flexface vinyl with 9mm keder strips on all four sides.
Overall unit size :  3255 x 1538 x depth 414 to 959 mm.
Total weight :

167 kg (Double sided unit).
Posting :  Bottom loaded and removed. Winch used to raise and tension the poster.
Voltage :   240 VAC, 50Hz.
Back-lighting : Four lighting units with 2 x 58W in each (450W for a double sided unit).
Post diameters : Circular and Octagonal posts to 400 mm diameter.

Note: It is the responsibility of the customer to confirm that the structural integrity of the lamppost and foundation is sufficient for the application.
